Product packaging quality concerns: speed, mechanical efficiency, precision, residual oxygen, air tightness, product yield, product appearance; Multi-standard and multi-varietal packaging: flexible, modular, intelligent equipment meets the faster and changeable market;
TECHNOLOGIES & EQUIPMENT
Better, what suits you is the best.
Start with the primary packaging of Can, Stick (Sachet) and Bag, secondary packaging. First extend upstream and downstream; then expand in parallel.
Material processing and processing
- Bag and ton pack feeding Screening, magnetic separation and metal detection→
Primary Packaging
- Auger, volumetric and gravimetric dosing→
- Pump dosing for liquid and paste→
- Multi-lane stick and sachet packaging→
- Can and jar filling, gassing and closing→
- VFFS and premade pouch packaging→
- Aseptic formats — prepared for partner expansion→
Secondary packaging
Minimum sales unit or display unit
- Counting, Grouping and Loading Box and Boxing Robot Palletizing and Wraping Conveying and Line Body Balance→
Control, Data and Compliance
Match compliance requirements for different industries and regions
- Recipe and batch management→
- Line-level data and OEE→
- Remote support and diagnostics→
- Traceability and electronic records→
- Risk assessment and CE files→
- Verification guided package→
JOYEA EQUIPMENT PLATFORMS
Core equipment platforms
The following content is organised from JOYEA official equipment pages for early selection; final performance follows product trials and approved project documents.
JOYEA OFFICIAL EQUIPMENT SOURCE

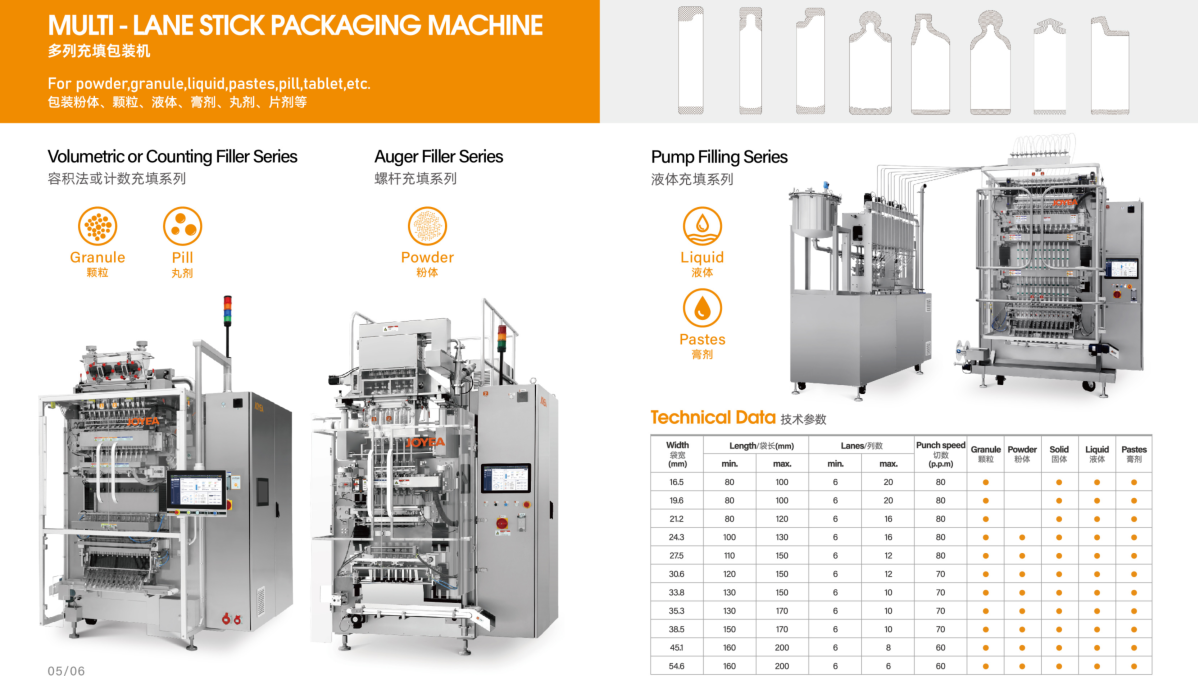

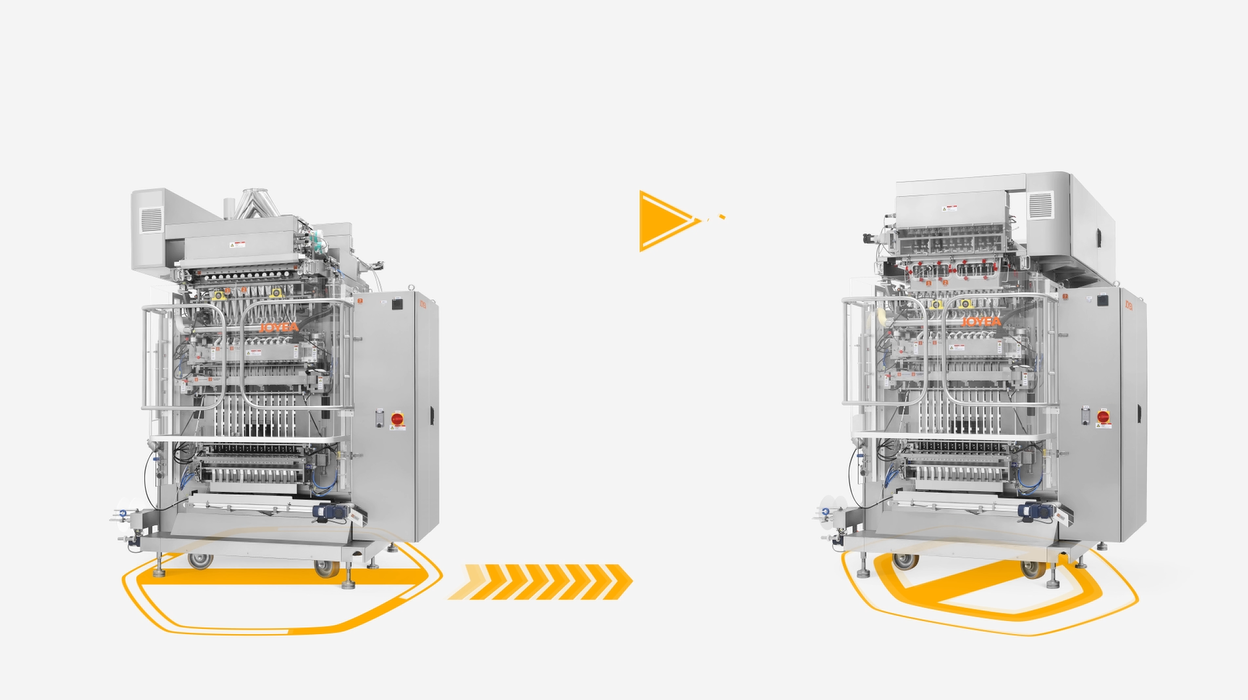

Multi-lane Stick packaging platform
According to the optional volumetric, counting, auger or pump-type measurement of particles, pellets, powder, liquid or paste, the sachet forming, filling and sealing are completed on the same multi-lane platform.
The typical configuration is 6–20 lane; the actual speed, bag width and dosing range are confirmed by the material test and project specification.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

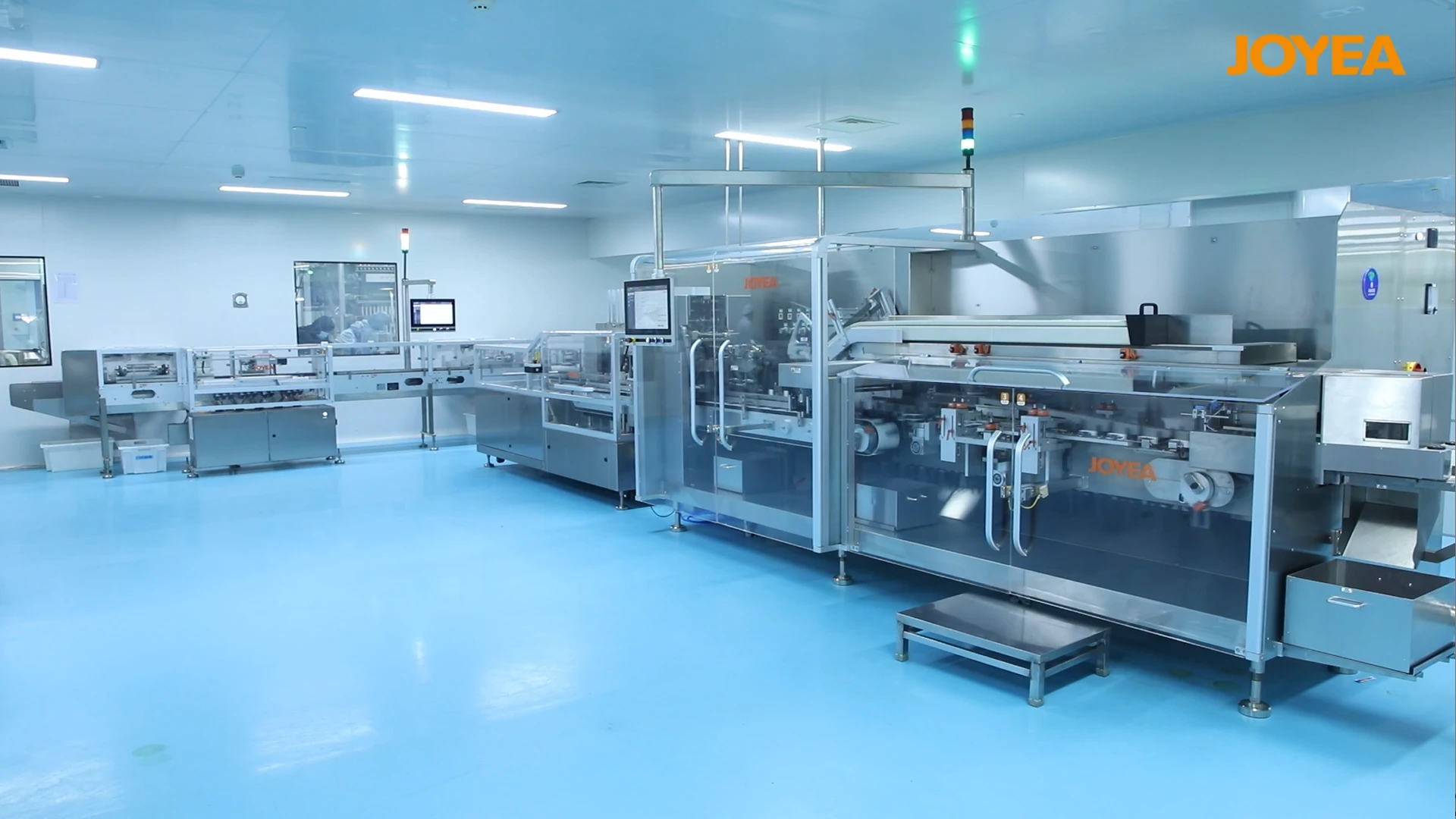

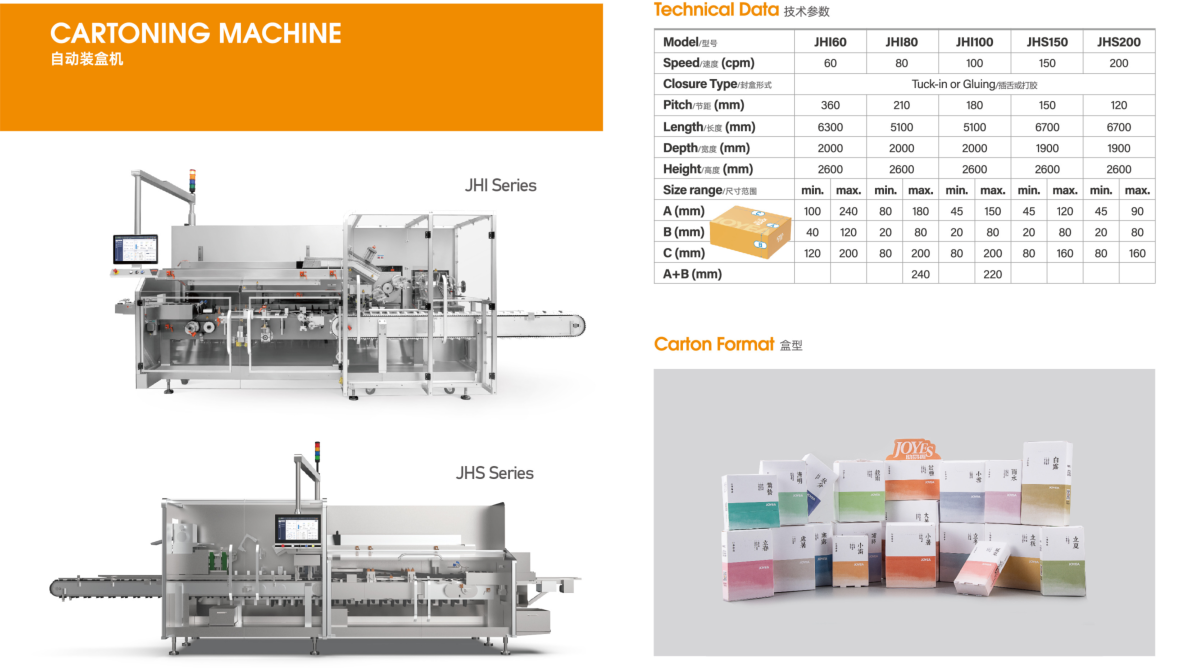

Automatic cartoning machine
JHI series can finish carton opening, loading, folding or hot melt adhesive; JHS series adopts dual channel, dual feed and double pusher structure to improve the output of the same term.
Optional coding, visual inspection, online folding manual, card and multi-layer boxing; the final speed is confirmed according to the product, paper cassette and feed method.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

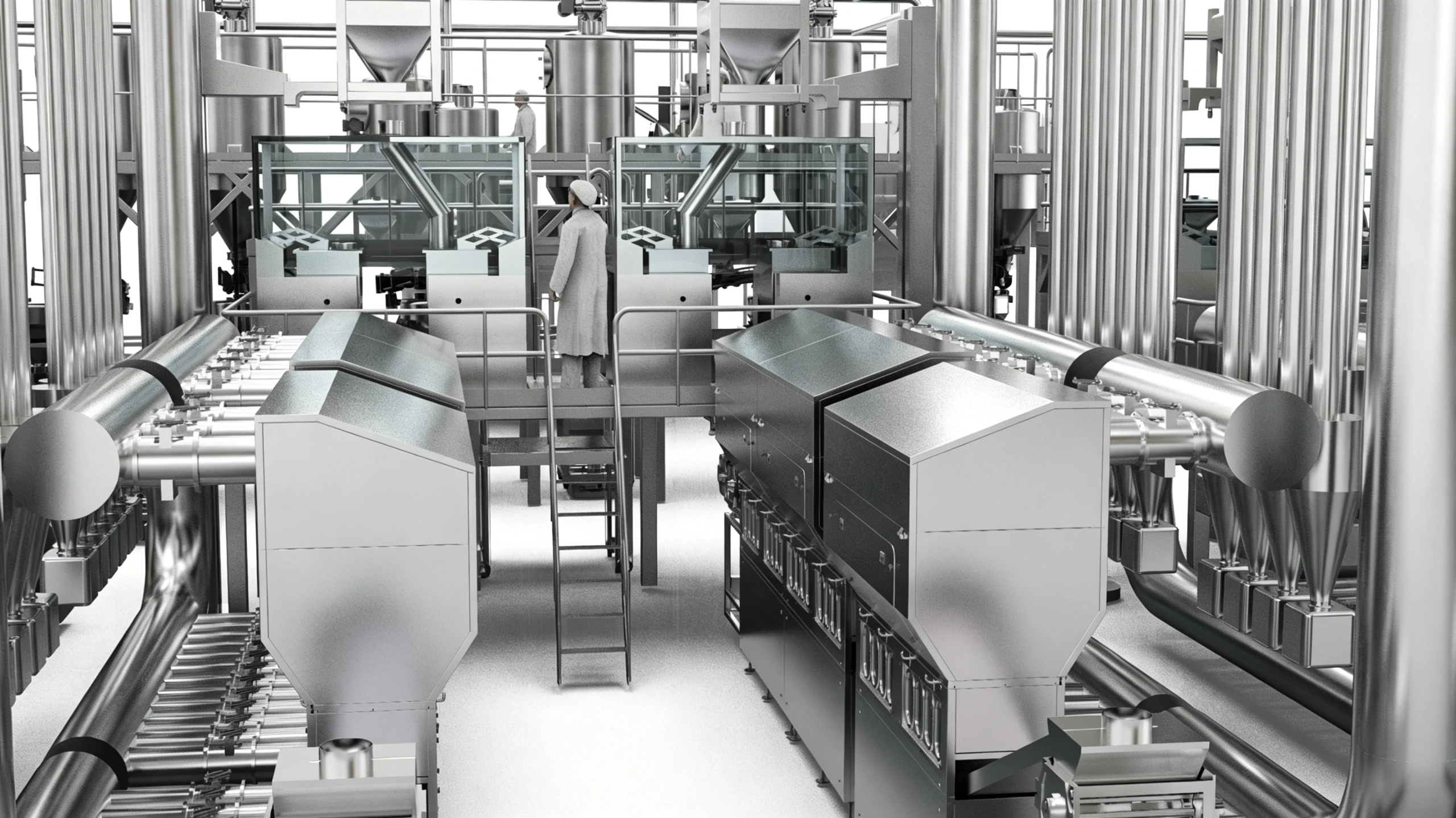

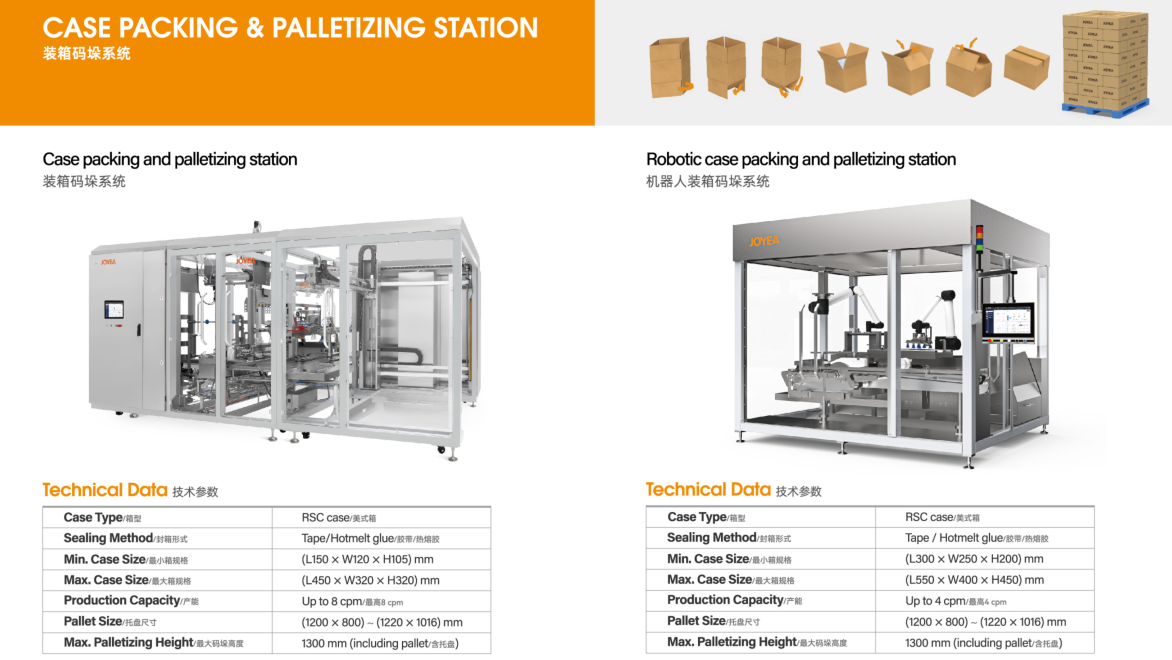

Casepacking and Palletizing Workstations
Combining product finishing, grabbing, unpacking, packing, sealing and pallet palletizing into the end of line workstation, you can choose a mechanical or robot scheme according to the packaging form.
Layout, gripping tools, carton forms and beats are configured according to the upstream output and palletizing mode.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

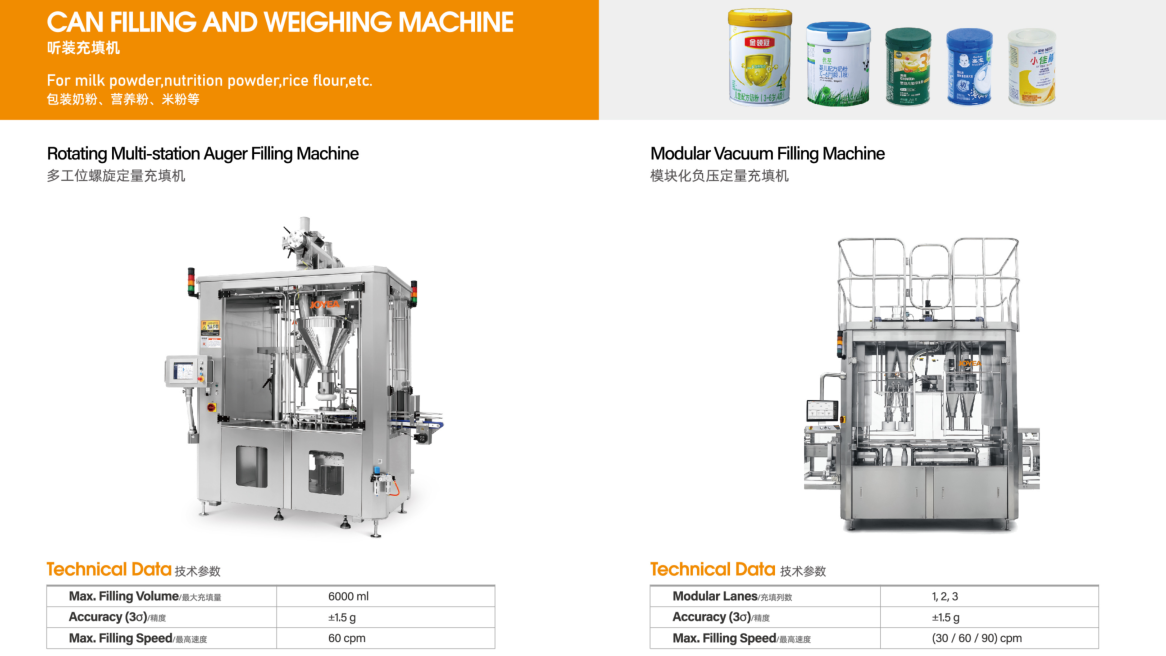

Can/Jar filling and closed loop weighing
The multi-station screw machine stabilizes the powder filling through section weighing and replenishment; the modular vacuum filling machine adopts independent empty can/jar weighing, roughening, finishing and compound weighing station, taking into account low dust and gentle treatment.
The filling accuracy can reach 3Σ±1.5 g; The configuration of the parallel modular filling module is up to 30/60/90 cans/min according to the 1/2/3 column.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

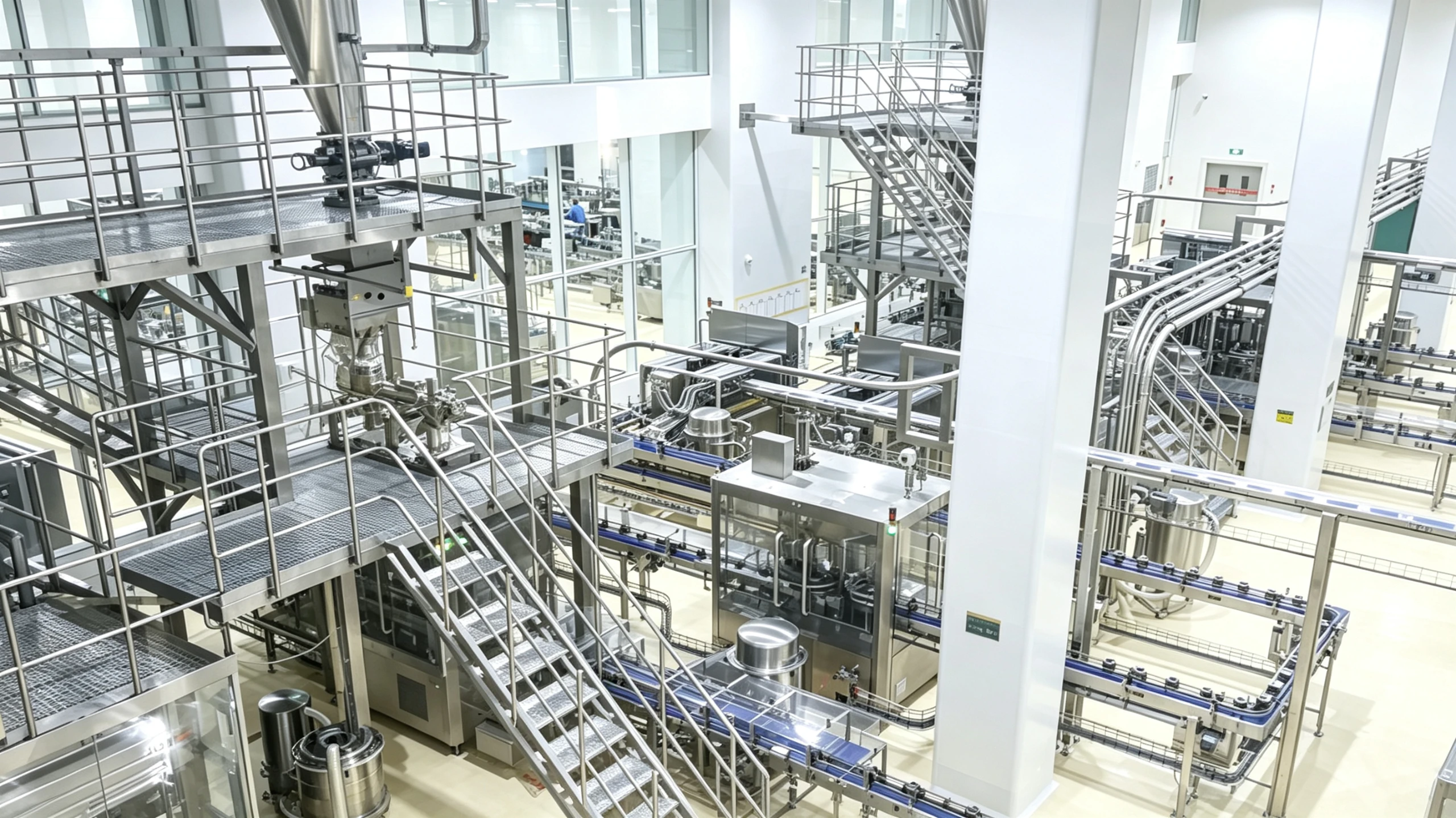

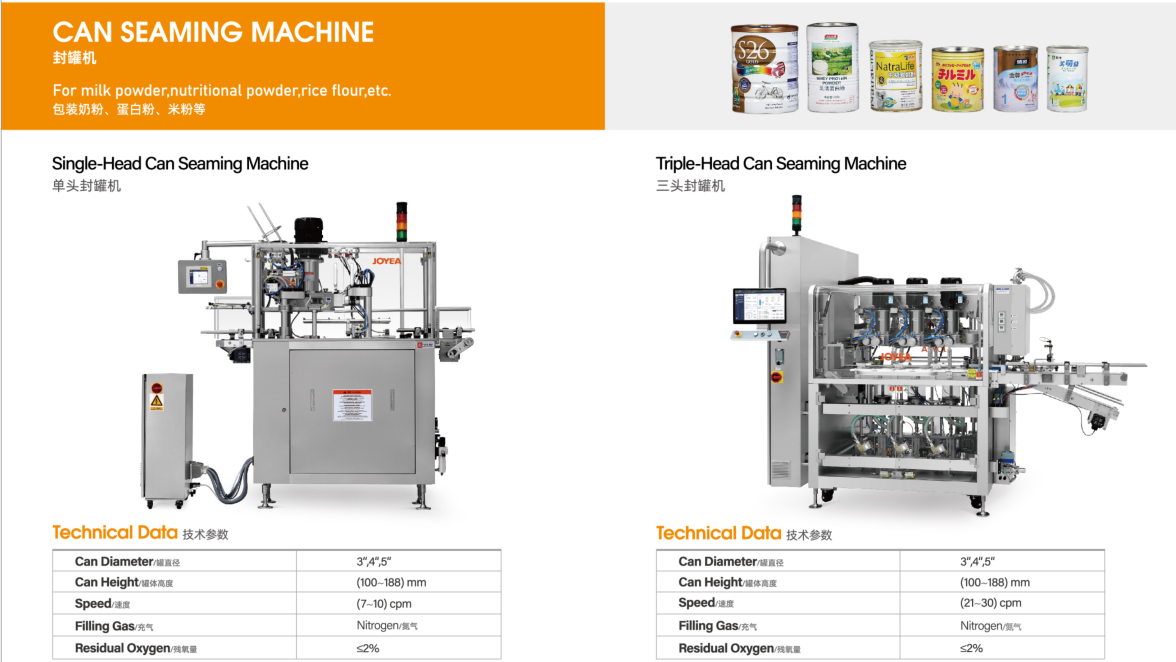

Vacuum-filled nitrogen-sealed all-in-one machine
The equipment integrates the functions of in-canning, vacuuming, nitrogen filling, sealing and canning; high-volume projects can be configured in triple-head parallelly.
The sealing speed, target residual oxygen, can diameter range and nitrogen consumption should be confirmed according to the product, tank type and shelf period goals.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

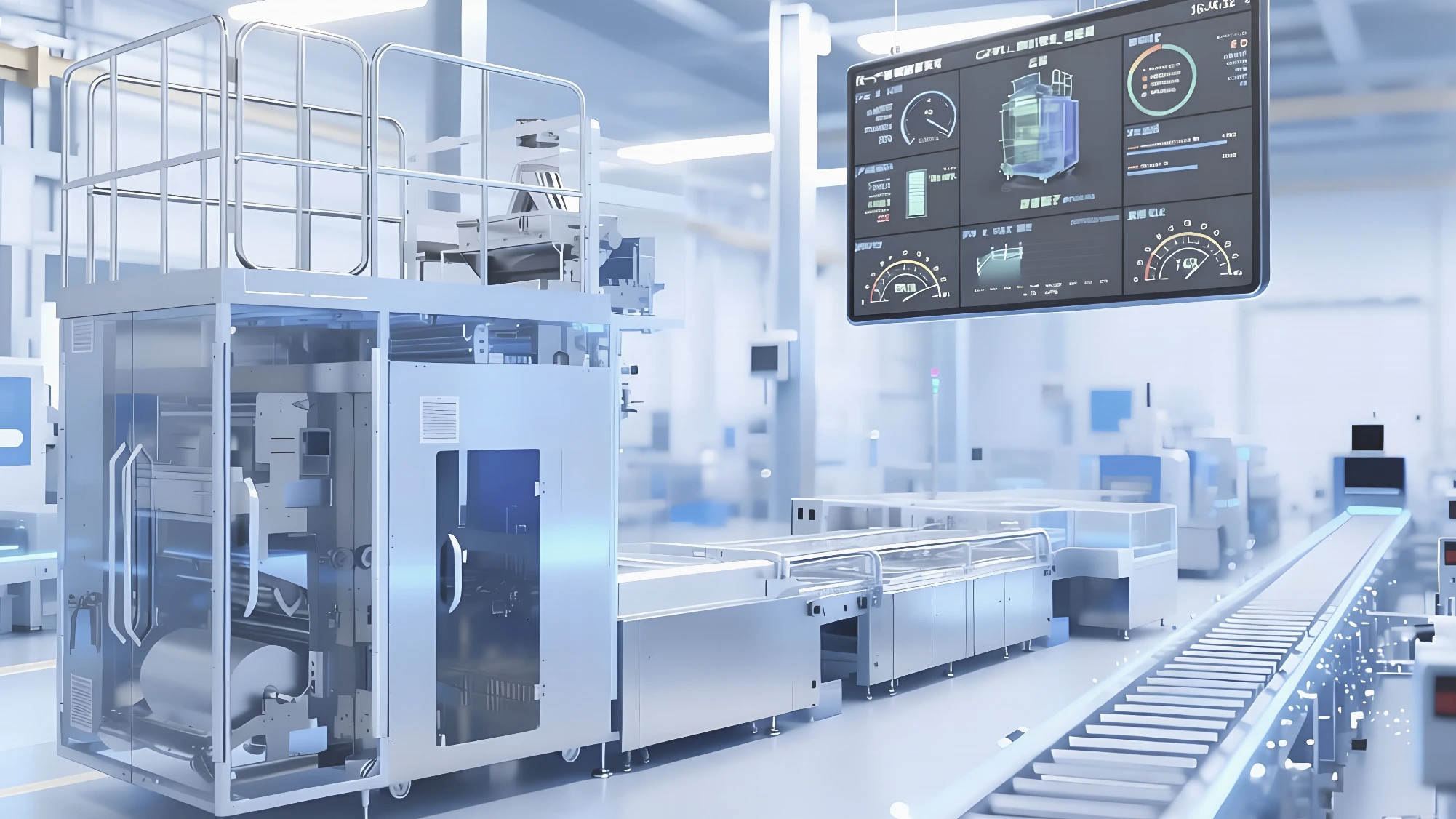

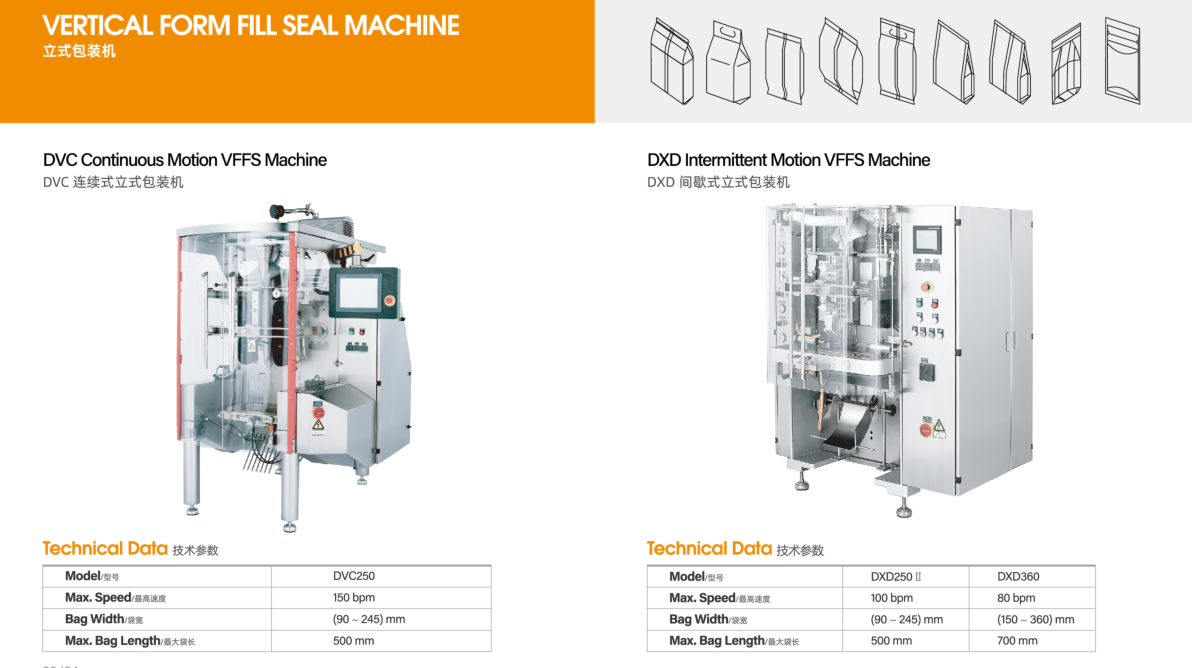

DVC/DXD vertical packaging machine
The DVC continuous platform is aimed at high-speed, low-down and clean production; the DXD intermittent platform has a compact structure and simple operation and maintenance.
Bag type, film width, speed and measurement method are confirmed according to product liquidity, target weight and packaging materials.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE

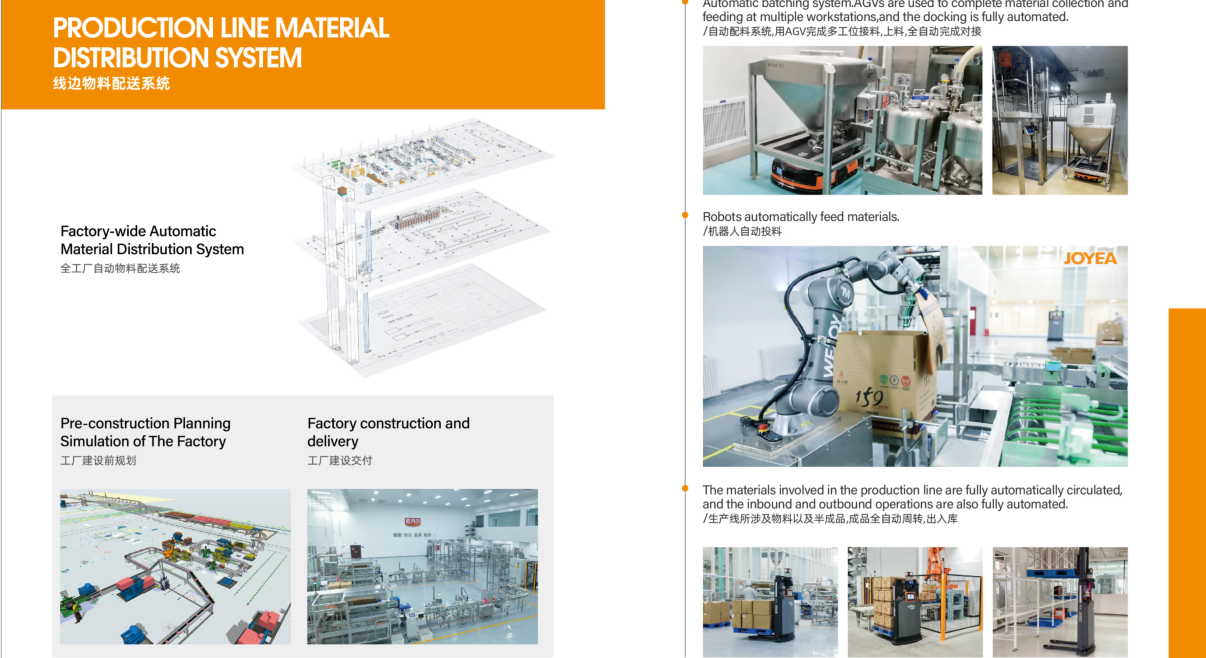

Material Distribution and Smart Factory
Use AGV, robot and unified dispatching to connect ingredients, feeding, packaging, packing, palletizing and warehousing, and reduce manual handling of cross-equipment.
As a project project module, plan and simulate according to the logistics flow, cache strategy, clean partition and system interface.Technical source: JOYEA
