Empty can, lid, spoon unloading, cleaning, testing, sterilization; the buffer station in the clean room, filling, air conditioning, sealing and testing; Packaging concerns: the production line is too long, and the cache station must be set between the key processes to reduce the upstream and downstream downtime to influence each other;
Accurate filling · Low residual oxygen · Reliable closure
Listen to the packaging line of can and bottle
For milk powder, rice flour, coffee, protein powder, the integration is from container, raw material treatment, to accurate measurement, air adjustment filling, sealing and secondary packaging, and tail packaging.
LINE MODULES & INTERFACES
Define line accountability from infeed to end-of-line.
Built from JOYEA's proven packaging platforms, with DOT managing equipment, controls, data, safety and acceptance interfaces.
Container infeed & cleaning
Depalletise, orient and clean empty cans or jars before controlled entry to the filling zone.
Tare identification
Weigh each empty container so net-fill control is not distorted by container-weight variation.
Coarse & fine filling
High-flow main filling is followed by precision top-up and final weight verification.
Powder & gas control
De-dusting, vacuum or nitrogen modules are configured around powder behaviour and residual-oxygen targets.
Seaming, capping & inspection
Protect closure integrity through controlled seaming or capping, code checks and rejection.
Label, case pack & palletise
Finish the line with label control, case packing, palletising and production-data handover.
Complete milk-powder stick-pack line
Watch application ↗DESIGNED OUTCOMES
The solution must translate into acceptable performance.
- Reduced container-weight influence
- Scalable oxygen-control architecture
- Integrated quality data
LINE & EQUIPMENT MODULES

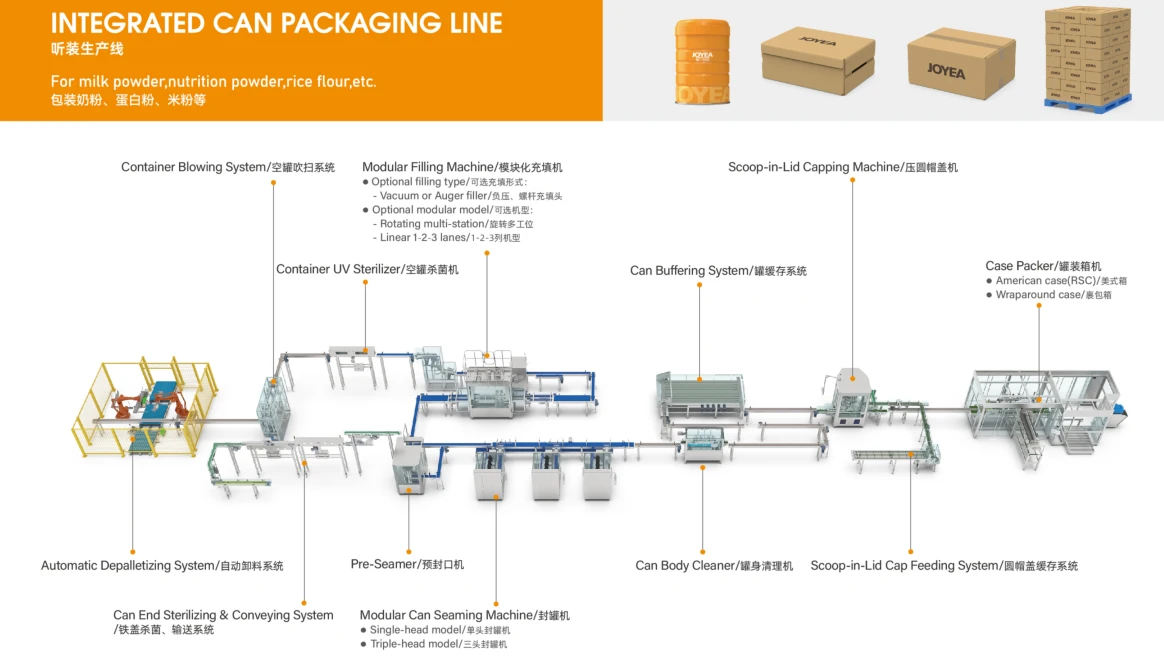

Composition of canning production line
The equipment modules are combined according to the product, packaging form, target production capacity and quality control requirements, and the final configuration is subject to material testing, URS and project confirmation documents.
JOYEA OFFICIAL EQUIPMENT SOURCE
Can/Jar filling and closed loop weighing
The multi-station screw machine stabilizes the powder filling through section weighing and replenishment; the modular vacuum filling machine adopts independent empty can/jar weighing, roughening, finishing and compound weighing station, taking into account low dust and gentle treatment.
The filling accuracy can reach 3Σ±1.5 g; The configuration of the parallel modular filling module is up to 30/60/90 cans/min according to the 1/2/3 column.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE
Vacuum-filled nitrogen-sealed all-in-one machine
The equipment integrates the functions of in-canning, vacuuming, nitrogen filling, sealing and canning; high-volume projects can be configured in triple-head parallelly.
The sealing speed, target residual oxygen, can diameter range and nitrogen consumption should be confirmed according to the product, tank type and shelf period goals.Technical source: JOYEA
JOYEA OFFICIAL EQUIPMENT SOURCE
Casepacking and Palletizing Workstations
Combining product finishing, grabbing, unpacking, packing, sealing and pallet palletizing into the end of line workstation, you can choose a mechanical or robot scheme according to the packaging form.
Layout, gripping tools, carton forms and beats are configured according to the upstream output and palletizing mode.Technical source: JOYEACONFIGURE THE LINE FOR YOUR PRODUCT
